HEX Earth Rod Seals are uniquely designed to prevent the ingress of ground water into the Earth Pit Chamber. Coupled with our HEP Polymer Earth Pit Chamber, these seal kits are highly suitable for use in areas where the water
table is very high & when earth pits have to be installed during construction through concrete foundations/basements. The single or double flanges serve to reduce the water pressure exerted on the Earth Pit Chamber.

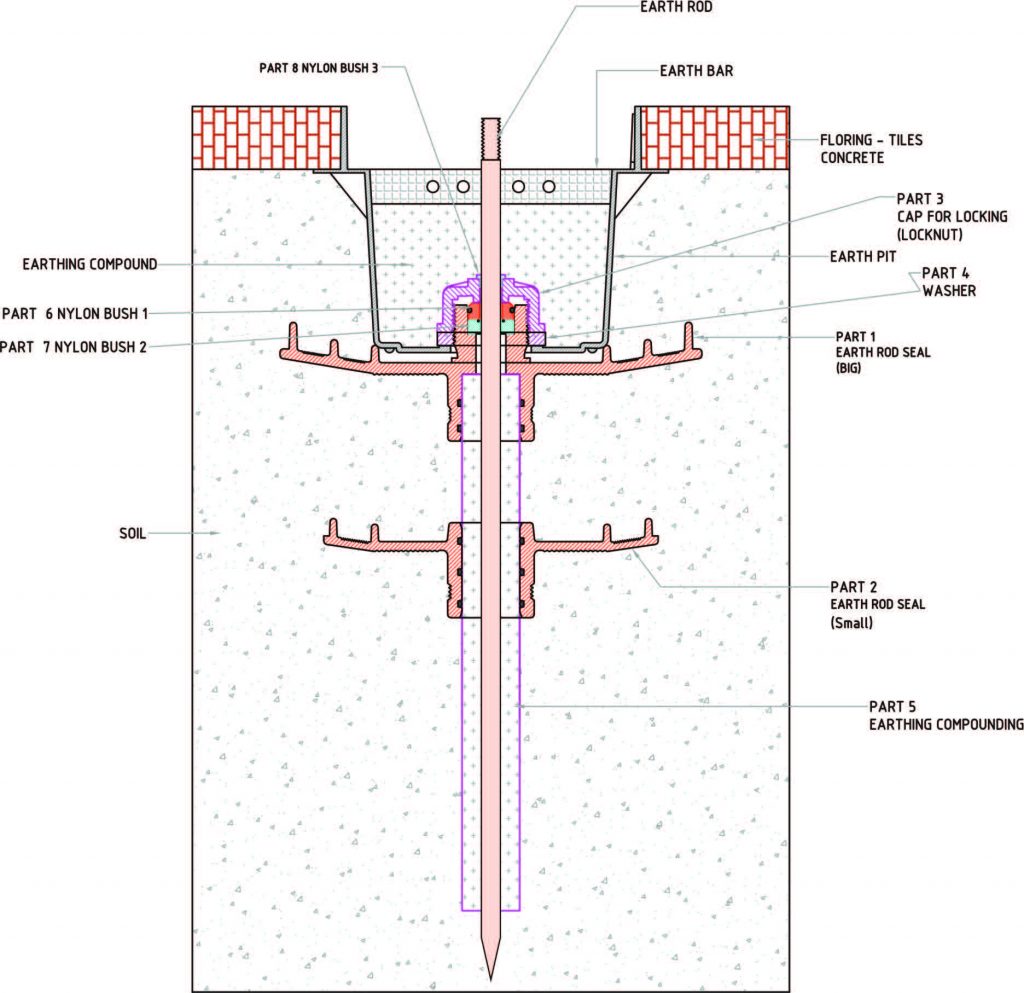

In concrete foundation/basement earthing the bottom flange is fitted on the damp proof membrane. The copper bonded earth rod is passed through a PVC pipe which is fitted in between the top & bottom flanges as per the length specified by the customer. Both the ends of the earth rod are made waterproof by special seal kits. These seal kits are made specifically to suit the diameter of the earth rod.

HEX Earth Rod Seal Kits have been tested successfully for compliance as per the IEC 62561-5 standard.

P.S. : Please specify Earth Rod diameter to be used with.

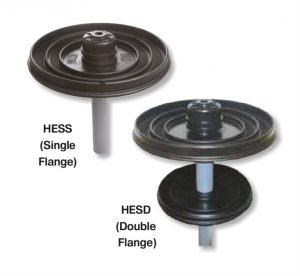

Product Code : HESS (Single Flange)     (Weight : 2kgs)
                            HESD (Double Flange)   (Weight : 3kgs)
