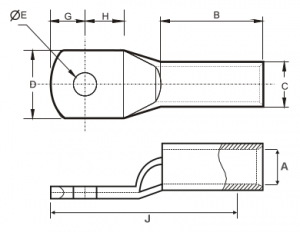

| Cable mm2 | Stud Hole E | Dimensions | Product Code | |||||||
| A | C | D | F | G | H | B | J | |||
| 6 | 8.4 | 3.8 | 5.5 | 12 | 1 | 6 | 9 | 11 | 29 | HTL 6 - 8 |
| 10 | 8.4 | 4.5 | 6.2 | 12 | 1.2 | 6 | 9 | 11 | 29 | HTL10 - 8 |
| 16 | 8.4 | 5.4 | 7.1 | 12 | 1.4 | 7 | 7 | 15 | 35 | HTL16 - 8 |
| 25 | 8.4 | 6.8 | 8.8 | 16 | 2 | 7 | 7 | 15 | 35 | HTL 25 - 8 |
| 35 | 8.4 | 8.2 | 10.6 | 15.3 | 2.4 | 9 | 9 | 15 | 38 | HTL 35 - 8 |
| 50 | 13 | 9.5 | 12.4 | 18 | 2.9 | 10 | 11 | 20 | 47 | HTL 50 - 12 |
| 70 | 13 | 11.2 | 14.7 | 21 | 3.5 | 12 | 13 | 22 | 54 | HTL70 - 12 |
| 95 | 13 | 13.5 | 17.4 | 25 | 3.9 | 13 | 13 | 24 | 59 | HTL 95 - 12 |
| 120 | 13 | 15 | 19.4 | 28 | 4.4 | 14 | 14 | 27 | 65 | HTL120 - 12 |
| 150 | 13 | 16.5 | 21.2 | 30 | 4.7 | 16 | 16 | 32 | 75 | HTL150 - 12 |
| 185 | 13 | 18.5 | 23.5 | 34 | 5 | 17 | 17 | 39 | 85 | HTL185 - 12 |
| 240 | 17 | 21 | 26.5 | 38 | 5.5 | 20 | 20 | 46 | 100 | HTL 240 - 16 |
| 300 | 21 | 23.5 | 30 | 43 | 6.5 | 22 | 22 | 51 | 110 | HTL 300 - 20 |
| 400 | 21 | 28.5 | 36.5 | 50.1 | 8 | 26 | 26 | 53 | 123 | HTL 400 - 20 |
| 500 | 21 | 30 | 39 | 56 | 9 | 28 | 28 | 58 | 134 | HTL 500 - 20 |
