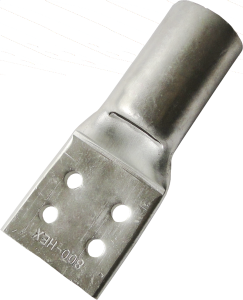

Four Hole Cable Terminal Ends

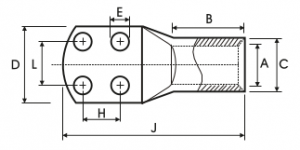

Cable mm2	Stud Hole E	Dimensions							Product Code
		A	C	D	B	L	H	J
300	8.5	23.5	30	56	42	35	25	101	HT 3004E8
	10.5	23.5	30	56	42	35	25	101	HT 3004E10
400	8.5	28.5	36.5	56	44	35	25	114	HT4004E8
	10.5	28.5	36.5	56	44	35	25	114	HT 4004E10
500	8.5	30	39	56	48	35	25	124	HT 5004E8
	10.5	30	39	56	48	35	25	124	HT 5004E10
630	8.5	35	45	65	56	35	25	144	HT 6304E8
	10.5	35	45	65	56	35	25	144	HT 6304E10

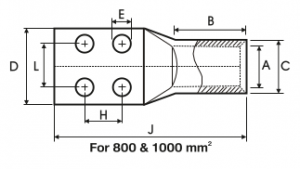

800	8.5	35	45	63.8	58	35	25	148	HT 8004E8
	8.5	35	45	36.8	58	35	25	18	HT 8004E10
1000	10.5	43	56.2	78.5	90	35	25	250	HT10004E8
	10.5	43	56.2	78.5	90	35	25	250	HT 10004E10

Cable mm2

Stud Hole E

Dimensions

Product Code

300

8.5

23.5

101

HT 3004E8

10.5

23.5

101

HT 3004E10

400

8.5

28.5

36.5

114

HT4004E8

10.5

28.5

36.5

114

HT 4004E10

500

8.5

124

HT 5004E8

10.5

124

HT 5004E10

630

8.5

144

HT 6304E8

10.5

144

HT 6304E10

800

8.5

63.8

148

HT 8004E8

8.5

36.8

HT 8004E10

1000

10.5

56.2

78.5

250

HT10004E8

10.5

56.2

78.5

250

HT 10004E10
