Crimping Type Heavy Duty Long Barrel Aluminium Terminal Ends For XLPE Cable

We manufacture a wide range of Crimping Type Heavy Duty Long Barrel Aluminium Terminal Ends from aluminium tubes. They are fully annealed to ensure qualities of electrical and mechanical strength.

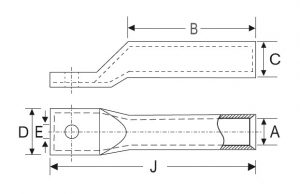

Cable mm2	Stud Hole E	Dimensions									Product Code
		A	C	D	F	G	H	K	B	J
10	5.2	4.5	6.2	11	1.2	6	7	3	10	26	BHT 10-5
	6.5	4.5	6.2	11	1.2	6	7	3	10	26	BHT 10-6
	8.4	4.5	6.2	12	1.2	6	9	3	10	28	BHT 10-8
	10.5	4.5	6.8	15	1.5	8	11	3	11	33	BHT 10-10
	13	4.5	6.8	18	1	9	11	5	11	36	BHT 10-12
16	5.2	5.4	7.1	12	1.4	7	7	4	12	30	BHT 16-5
	6.5	5.4	7.1	12	14	7	7	4	12	30	BHT 16-6
	8.4	5.4	7.1	12	14	7	7	4	12	30	BHT 16-8
	10.5	5.5	7.6	15	1.7	8	12	4	12	36	BHT 16-10
	13	5.5	7.6	17	1.5	11	13	4	12	39	BHT 16-13
	17	5.5	7.6	21	1	13	14	5	12	44	BHT 16-16
20	8.4	6	7.7	12	1.7	7	7	4	12	32	BHT 20-8
25	6.5	6.8	8.8	13	2	7	7	4	12	30	BHT 25-6
	8.4	6.8	8.8	13	2	7	7	4	12	30	BHT 25-8
	10.5	6.8	8.8	15	1.5	10	11	4	13	38	BHT 25-10
	13	6.8	9.2	17	2	10	12	4	15	41	BHT 25-12
	17	6.8	9.2	21	1.5	13	14	5	15	47	BHT 25-16
35	6.5	8.2	10.6	15.3	2.4	9	9	5	13.5	37	BHT 35-6
	8.4	8.2	10.6	15.3	2.4	9	9	5	13.5	37	BHT 35-8
	10.5	8.2	10.6	15.3	2.4	9	9	5	13.5	37	BHT 35-10
	13	8.2	10.6	15.3	2	10	12	5	13.5	41	BHT 35-12
	17	8.2	10.6	22	1.5	13	14	5	15	47	BHT 35-16
50	6.5	9.5	12.4	17.8	2.9	9	10	6	17	42	BHT 50-6
	8.4	9.5	12.4	17.8	2.9	9	10	6	17	42	BHT 50-8
	10.5	9.5	12.4	17.8	2.9	9	10	6	17	42	BHT 50-10
	13	9.5	12.4	20	2.6	10	12	6	17	45	BHT 50-13
	14.5	9.5	12.4	22	2.2	15	15	6	18	54	BHT 50-14
	17	9.5	12.4	22	2.2	15	15	6	18	54	BHT 50-16
	21	9.5	12.4	26	1.8	16	18	6	18	60	BHT 50-20
70	8.4	11.3	14.6	21	3.5	11	11	6	18.5	47	BHT 70-8
	10.5	11.3	14.6	21	3.5	11	11	6	18.5	47	BHT 70-10
	13	11.3	14.6	21	3.5	11	11	6	18.5	47	BHT 70-12
	14.5	11.3	14.6	22	3.4	14	15	7	18.5	55	BHT 70-14
	17	11.3	14.6	26	2.5	14	16	7	18.5	56	BHT 70-16
	21	11.3	14.6	28	2.3	16	18	9	18.5	63	BHT 70-20
95	8.4	13.5	17.4	25	3.9	12	13	7	21	53	BHT 95-8
	10.5	13.5	17.4	25	3.9	12	13	7	21	53	BHT 95-10
	13	13.5	17.4	25	3.9	12	13	7	21	53	BHT 95-12
	14.5	13.5	17.4	25	3.9	14	15	7	22	55	BHT 95-14
	17	13.5	17.4	25	3.9	14	16	7	22	56	BHT 95-16
	21	13.5	17.4	28	3.5	15	16	10	22	63	BHT 95-20
120	8.4	15	19.4	28	4.4	13	14	9	23	60	BHT 120-8
	10.5	15	19.4	28	4.4	13	14	9	23	60	BHT 120-10
	13	15	19.4	28	4.4	13	14	9	23	60	BHT 120-12
	14.5	15	19.4	28	4.4	13	14	9	23	60	BHT 120-14
	17	15	19.4	28	4.4	16	16	10	23	64	BHT 120-16
	21	15	19.4	28	4.4	16	20	10	23	68	BHT 120-20
150	8.4	16.5	21.2	30	4.7	16	16	11	27	70	BHT 150-8
	10.5	16.5	21.2	30	4.7	16	16	11	27	70	BHT 150-10
	13	16.5	21.2	30	4.7	16	16	11	27	70	BHT 150-12
	14.7	16.5	21.2	30	4.7	16	16	11	27	70	BHT 150-14
	17	16.5	21.2	30	4.7	16	16	11	27	70	BHT 150-16
	21	16.5	21.2	30	4.7	16	16	12	27	73	BHT 150-20
185	10.5	18.5	23.5	34	5	17	19	12	32	80	BHT 185-10
	13	18.5	23.5	34	5	17	19	12	32	80	BHT 185-12
	14.7	18.5	23.5	34	5	17	19	12	32	80	BHT 185-14
	17	18.5	23.5	34	5	17	19	12	32	80	BHT 185-16
	21	18.5	23.5	34	5	17	19	12	32	80	BHT 185-20
240	10.5	21	26.5	38	5.5	20	21	14	39	94	BHT 240-10
	13	21	26.5	38	5.5	20	21	14	39	94	BHT 240-12
	14.5	21	26.5	38	5.5	20	21	14	39	94	BHT 240-14
	17	21	26.5	38	5.5	20	21	14	39	94	BHT 240-16
	21	21	26.5	38	5.5	20	21	14	39	94	BHT 240-20
