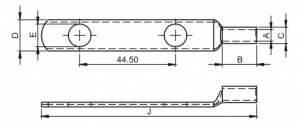

Cable Size | Stud Hole E | Dimensions in mm | Product Code | |||||
mm2 | AWG | A | C | D | B (Strip Length) | J | ||
16 | #6 | 5.2 | 5.4 | 7.1 | 12.0 | 16.0 | 100.0 | HT 16 2ER-5 |
6.5 | 5.4 | 7.1 | 12.0 | 16.0 | 100.0 | HT 16 2ER-6 | ||
8.4 | 5.4 | 7.1 | 12.0 | 16.0 | 100.0 | HT 16 2ER-8 | ||
10.5 | 5.5 | 7.6 | 15.0 | 16.0 | 100.0 | HT 16 2ER-10 | ||
13 | 5.5 | 7.6 | 17.0 | 16.0 | 100.0 | HT 16 2ER-12 | ||
17 | 5.5 | 7.6 | 21.0 | 16.0 | 105.0 | HT 16 2ER-16 | ||
20 | #4 | 8.4 | 6.0 | 7.7 | 12.0 | 16.0 | 100.0 | HT 20 2ER-8 |
25 | #3 | 6.5 | 6.8 | 8.8 | 13.0 | 16.0 | 100.0 | HT 25 2ER-6 |
8.4 | 6.8 | 8.8 | 13.0 | 16.0 | 100.0 | HT 25 2ER-8 | ||
10.5 | 6.8 | 8.8 | 15.0 | 16.0 | 100.0 | HT 25 2ER-10 | ||
13 | 6.8 | 9.2 | 17.0 | 16.0 | 100.0 | HT 25 2ER-12 | ||
17 | 6.8 | 9.2 | 21.0 | 16.0 | 105.0 | HT 25 2ER-16 | ||
35 | #2 | 6.5 | 8.2 | 10.6 | 15.3 | 16.0 | 100.0 | HT 35 2ER-6 |
8.4 | 8.2 | 10.6 | 15.3 | 16.0 | 100.0 | HT 35 2ER-8 | ||
10.5 | 8.2 | 10.6 | 15.3 | 16.0 | 100.0 | HT 35 2ER-10 | ||
13 | 8.2 | 10.6 | 18.0 | 16.0 | 100.0 | HT 35 2ER-12 | ||
17 | 8.2 | 10.6 | 22.0 | 16.0 | 105.0 | HT 35 2ER-16 | ||
50 | 1/0 MCM | 6.5 | 9.5 | 12.4 | 17.8 | 25.0 | 109.0 | HT 50 2ER-6 |
8.4 | 9.5 | 12.4 | 17.8 | 25.0 | 109.0 | HT 50 2ER-8 | ||
10.5 | 9.5 | 12.4 | 17.8 | 25.0 | 109.0 | HT 50 2ER-10 | ||
13 | 9.5 | 12.4 | 20.0 | 25.0 | 109.0 | HT 50 2ER-12 | ||
13 | 9.5 | 12.4 | 18.0 | 25.0 | 109.0 | HT 50 2EN-12 | ||
14.5 | 9.5 | 12.4 | 22.0 | 25.0 | 112.0 | HT 50 2ER-14 | ||
17 | 9.5 | 12.4 | 22.0 | 25.0 | 114.0 | HT 50 2ER-16 | ||
21 | 9.5 | 12.4 | 26.0 | 25.0 | 119.0 | HT 50 2ER-20 | ||
70 | 2/0 MCM | 8.4 | 11.3 | 14.6 | 21.0 | 30.0 | 114.0 | HT 70 2ER-8 |
10.5 | 11.3 | 14.6 | 21.0 | 30.0 | 114.0 | HT 70 2ER-10 | ||
13 | 11.3 | 14.6 | 21.0 | 30.0 | 114.0 | HT 70 2ER-12 | ||
14.5 | 11.3 | 14.6 | 22.0 | 30.0 | 118.0 | HT 70 2ER-14 | ||
17 | 11.3 | 14.6 | 26.0 | 30.0 | 120.0 | HT 70 2ER-16 | ||
21 | 11.3 | 14.6 | 28.0 | 30.0 | 127.0 | HT 70 2ER-20 | ||
95 | 3/0 MCM | 8.4 | 13.5 | 17.4 | 25.0 | 30.0 | 116.0 | HT 95 2ER-8 |
10.5 | 13.5 | 17.4 | 25.0 | 30.0 | 116.0 | HT 95 2ER-10 | ||
13 | 13.5 | 17.4 | 25.0 | 30.0 | 116.0 | HT 95 2ER-12 | ||
14.5 | 13.5 | 17.4 | 25.0 | 30.0 | 118.0 | HT 95 2ER-14 | ||
17 | 13.5 | 17.4 | 25.0 | 30.0 | 120.0 | HT 95 2ER-16 | ||
21 | 13.5 | 17.4 | 28.0 | 30.0 | 127.0 | HT 95 2ER-20 | ||
120 | 4/0 MCM | 8.4 | 15.0 | 19.4 | 28.0 | 35.0 | 122.0 | HT 120 2ER-8 |
10.5 | 15.0 | 19.4 | 28.0 | 35.0 | 122.0 | HT 120 2ER-10 | ||
13 | 15.0 | 19.4 | 28.0 | 35.0 | 122.0 | HT 120 2ER-12 | ||
14.5 | 15.0 | 19.4 | 28.0 | 35.0 | 125.0 | HT 120 2ER-14 | ||
17 | 15.0 | 19.4 | 28.0 | 35.0 | 128.0 | HT 120 2ER-16 | ||
21 | 15.0 | 19.4 | 28.0 | 35.0 | 133.0 | HT 120 2ER-20 | ||
150 | 250 MCM | 8.4 | 16.5 | 21.2 | 30.0 | 40.0 | 126.0 | HT 150 2ER-8 |
10.5 | 16.5 | 21.2 | 30.0 | 40.0 | 126.0 | HT 150 2ER-10 | ||
13 | 16.5 | 21.2 | 30.0 | 40.0 | 126.0 | HT 150 2ER-12 | ||
14.7 | 16.5 | 21.2 | 30.0 | 40.0 | 132.0 | HT 150 2ER-14 | ||
17 | 16.5 | 21.2 | 30.0 | 40.0 | 134.0 | HT 150 2ER-16 | ||
21 | 16.5 | 21.2 | 30.0 | 40.0 | 139.0 | HT 150 2ER-20 | ||
185 | 350 MCM | 10.5 | 18.5 | 23.5 | 34 | 42 | 132 | HT 185 2ER-10 |
13 | 18.5 | 23.5 | 34 | 42 | 132 | HT 185 2ER-12 | ||
14.7 | 18.5 | 23.5 | 34 | 42 | 135 | HT 185 2ER-14 | ||
17 | 18.5 | 23.5 | 34 | 42 | 137 | HT 185 2ER-16 | ||
21 | 18.5 | 23.5 | 34 | 42 | 142 | HT 185 2ER-20 | ||
240 | 500 MCM | 10.5 | 21 | 26.5 | 38 | 50 | 143 | HT 240 2ER-10 |
13 | 21 | 26.5 | 38 | 50 | 143 | HT 240 2ER-12 | ||
14.7 | 21 | 26.5 | 38 | 50 | 145 | HT 240 2ER-14 | ||
17 | 21 | 26.5 | 38 | 50 | 147 | HT 240 2ER-16 | ||
21 | 21 | 26.5 | 38 | 50 | 152 | HT 240 2ER-20 | ||
BL | 21 | 26.5 | 38 | 50 | 143 | HT 240 2ER-BL | ||
300 | 600 MCM | 10.5 | 23.5 | 30 | 43 | 55 | 144 | HT 300 2ER-10 |
13 | 23.5 | 30 | 43 | 55 | 144 | HT 300 2ER-12 | ||
14.7 | 23.5 | 30 | 43 | 55 | 151 | HT 300 2ER-14 | ||
17 | 23.5 | 30 | 43 | 55 | 153 | HT 300 2ER-16 | ||
21 | 23.5 | 30 | 43 | 55 | 158 | HT 300 2ER-20 | ||
BL | 23.5 | 30 | 43 | 55 | 144 | HT 300 2ER-BL | ||
400 | 750 MCM | 13 | 28.5 | 36.5 | 52.5 | 60 | 149 | HT 400 2ER-12 |
14.7 | 28.5 | 36.5 | 52.5 | 60 | 158 | HT 400 2ER-14 | ||
17 | 28.5 | 36.5 | 52.5 | 60 | 160 | HT 400 2ER-16 | ||
21 | 28.5 | 36.5 | 52.5 | 60 | 165 | HT 400 2ER-20 | ||
BL | 28.5 | 36.5 | 52.5 | 60 | 149 | HT 400 2ER-BL | ||
500 | 1000 MCM | 13 | 30 | 39 | 56 | 65 | 160 | HT 500 2ER-12 |
14.7 | 30 | 39 | 56 | 65 | 163 | HT 500 2ER-14 | ||
17 | 30 | 39 | 56 | 65 | 165 | HT 500 2ER-16 | ||
21 | 30 | 39 | 56 | 65 | 170 | HT 500 2ER-20 | ||
BL | 30 | 39 | 56 | 65 | 160 | HT 500 2ER-BL |
