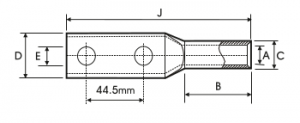

| Cable mm2 | Stud Hole E | Dimensions | Product Code | ||||
| A | C | D | B | J | |||
| 16 | 10.5 | 5.4 | 7.6 | 14.5 | 16 | 100 | HT16 2E10 |
| 25 | 10.5 | 6.8 | 8.8 | 15 | 16 | 100 | HT252E10 |
| 35 | 10.5 | 8.2 | 10.6 | 16.5 | 16 | 100 | HT352E10 |
| 50 | 10.5 | 9.5 | 12.4 | 17 | 25 | 109 | HT502E10 |
| 13 | 9.5 | 12.4 | 17 | 25 | 109 | HT50 2E12 | |
| 70 | 10.5 | 11.3 | 14.7 | 21 | 30 | 114 | HT702E10 |
| 13 | 11.3 | 14.7 | 21 | 30 | 114 | HT70 2E12 | |
| 95 | 10.5 | 13.5 | 17.4 | 25 | 30 | 116 | HT95 2E10 |
| 13 | 13.5 | 17.4 | 25 | 30 | 116 | HT95 2E12 | |
| 120 | 10.5 | 15 | 19.4 | 27.5 | 35 | 122 | HT120 2E10 |
| 13 | 15 | 19.4 | 27.5 | 35 | 122 | HT120 2E12 | |
| 150 | 10.5 | 16.5 | 21.2 | 30 | 40 | 126 | HT150 2E10 |
| 13 | 16.5 | 21.2 | 30 | 40 | 126 | HT150 2E12 | |
| 185 | 10.5 | 18.5 | 23.5 | 33.5 | 42 | 132 | HT185 2E10 |
| 13 | 18.5 | 23.5 | 33.5 | 42 | 132 | HT185 2E12 | |
| 240 | 10.5 | 21 | 26.5 | 38.5 | 50 | 143 | HT240 2E10 |
| 13 | 21 | 26.5 | 38.5 | 50 | 143 | HT2402E12 | |
| 300 | 13.7 | 23.5 | 30 | 43 | 55 | 144 | HT3002E10 |
| 400 | 13.7 | 28.5 | 36.5 | 52.5 | 60 | 149 | HT4002E10 |
| 500 | 13.7 | 30 | 39 | 56 | 65 | 160 | HT5002E10 |
| 630 | 13.7 | 35 | 45 | 36.8 | 75 | 160 | HT6302E10 |
