Cable Terminal Ends As Per Australian Standard

Home » Cable Terminal Ends » Lugs » Cable Terminal Ends As Per Australian Standard

Cable Terminal Ends - Lugs

Cable Terminal Ends As Per Australian Standard

Our range of Cable Terminal Ends is designed as per Australian Standard and is manufactured from soft drawn, pure, high conductivity copper tubes conforming to BS 1977. They are fully annealed to ensure qualities of electrical and mechanical strength. These are widely used in Electricity Boards and Electrical Industries.

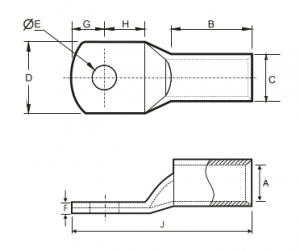

Cable mm2	Stud Hole E	Dimensions							Product Code
		A	D	F	B	G	H	J
1.5 - 4	4.2	2	8	1	7.5	4	5	18.5	HAHT 1.5-4
1.5 - 5	5.2	2	8	1	7.5	4	5	18.5	HAHT 1.5-5
1.5 - 6	6.5	2	10	0.8	7.5	4	6	19.5	HAHT 1.5-6
2.5 - 4	4.2	2.5	8	1	8	4	5	19	HAHT 2.5-4
2.5 - 5	5.2	2.5	10	0.8	8	5	6	20	HAHT 2.5-5
2.5 - 6	6.5	2.5	10	0.8	8	5	6	20	HAHT 2.5-6
2.5 - 8	8.4	2.5	11	0.7	8	6	9	26	HAHT 2.5-8
4 - 5	5.2	3.3	10	1	9	5	6	22	HAHT 4-5
4 - 6	6.5	3.3	10	1	9	5	6	22	HAHT 4-6
4 - 8	8.4	3.3	12	0.8	9	6	9	26	HAHT 4-8
4 - 10	10.2	3.3	15	0.8	9	8	11	32	HAHT 4-10
6 - 5	5.2	3.8	10	1.2	10	5	6	23	HAHT 6-5
6 - 6	6.5	3.8	12	1	10	6	9	27	HAHT 6-6
6 - 8	8.4	3.8	12	1	10	6	9	27	HAHT 6-8
6 - 10	10.2	3.8	15	0.8	10	8	11	32	HAHT 6-10
10 - 5	5.2	4.7	12	1.8	10	6	7	27	HAHT 10-5
10 - 6	6.5	4.7	12	1.8	10	6	7	27	HAHT 10-6
10 - 8	8.4	4.7	14	1.6	10	7	8	29	HAHT 10-8
10 - 10	10.5	4.7	15	1.5	10	8	10	32	HAHT 10-10
10 - 12	13	4.7	18	1	10	10	12	38	HAHT 10-12
16 - 6	6.5	5.5	11	2.4	19	7	9	39	HAHT 16-6
16 - 8	8.4	5.5	14	1.7	19	7	9	39	HAHT 16-8
16 - 10	10.5	5.5	16	1.5	19	8	10	41	HAHT 16-10
16 - 12	13	5.5	18	1.2	19	10	13	46	HAHT 16-12
25 - 6	6.5	7.1	13.5	2.4	21	7	9	41	HAHT 25-6
25 - 8	8.4	7.1	13.5	2.4	21	7	9	41	HAHT 25-8
25 - 10	10.5	7.1	16	1.9	21	9	10	44	HAHT 25-10
25 - 12	13	7.1	18	1.6	21	10	13	48	HAHT 25-12
35 - 6	6.5	8.4	16	3	21	9	10	45	HAHT 35-6
35 - 8	8.4	8.4	16	3	21	9	10	45	HAHT 35-8
35 - 10	10.5	8.4	18	2.6	21	9	10	45	HAHT 35-10
35 - 12	13	8.4	20	2.2	22	11	13	51	HAHT 35-12
50 - 6	6.5	9.5	18	3.3	22	8	10	46	HAHT 50-6
50 - 8	8.4	9.5	18	3.3	22	8	10	46	HAHT 50-8
50 - 10	10.5	9.5	18	3.3	22	8	10	52	HAHT 50-10
50 - 12	13	9.5	21	2.7	22	11	13	54	HAHT 50-12
70 - 6	6.5	11.3	21	3.5	22	11	13	54	HAHT 70-6
70 - 8	8.4	11.3	21	3.5	24	11	13	54	HAHT 70-8
70 - 10	10.5	11.3	21	3.5	24	11	13	54	HAHT 70-10
70 - 12	13	11.3	21	3.5	24	11	13	54	HAHT 70-12
70 -16	17	11.3	26	3	24	14	60	61	HAHT 70-16
95 - 8	8.4	13.5	25	4	27	12	14	60	HAHT 95-8
95 - 10	10.5	13.5	25	4	27	12	14	60	HAHT 95-10
95 - 12	13	13.5	25	4	27	12	14	60	HAHT 95-12
95 - 16	17	13.5	25	3.5	27	14	16	61	HAHT 95-16
120 - 8	8.4	15.6	30	5	30	12	14	64	HAHT 120-8
120 - 10	10.5	15.6	30	5	30	12	14	64	HAHT 120-10
120 - 12	13	15.6	30	5	30	12	14	64	HAHT 120-12
120 - 16	17	15.6	30	5	30	16	16	72	HAHT 120-16
150 - 10	10.5	16.7	32	5.8	30	16	16	71	HAHT 150-10
150 - 12	13	16.7	32	5.8	32	18	18	75	HAHT 150-12
150 - 16	17	16.7	32	5.8	30	18	18	75	HAHT 150-16
185 - 10	18.4	10.5	36	5.8	32	16	16	74	HAHT 185-10
185 - 12	13	18.5	36	5.8	32	18	18	79	HAHT 185-12
185 - 16	17	18.4	36	5.8	32	18	18	79	HAHT 185-16
240 - BL	--	21.2	41	7	38	21	21	92	HAHT 240-BL
240 - 10	10.5	21.2	41	7	38	21	21	92	HAHT 240-10
240 - 12	13	21.2	41	7	38	21	21	92	HAHT 240-12
240 - 16	17	21.2	41	7	38	21	21	92	HAHT 240-16
300 - BL	--	23.8	46	7.8	42	23	23	101	HAHT 300-BL
300 - 12	13	23.8	46	7.8	42	23	23	101	HAHT 300-12
300 - 16	17	23.8	46	7.8	42	23	23	101	HAHT 300-16
400 - BL	--	26.8	50	8	44	24	24	107	HAHT 400-BL
500 - BL	--	30	56	9	50	27	27	119	HAHT 500-BL
630 - BL	--	34	64.4	11	58	32	32	139	HAHT 630-BL
