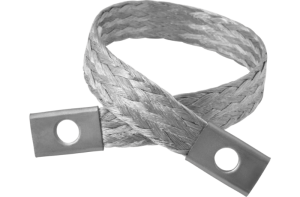

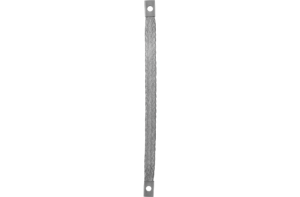

Tinned Copper Flexible Braids - Crimped With Connectors

Home » Cable Terminal Ends » Connectors » Tinned Copper Flexible Braids – Crimped With Connectors

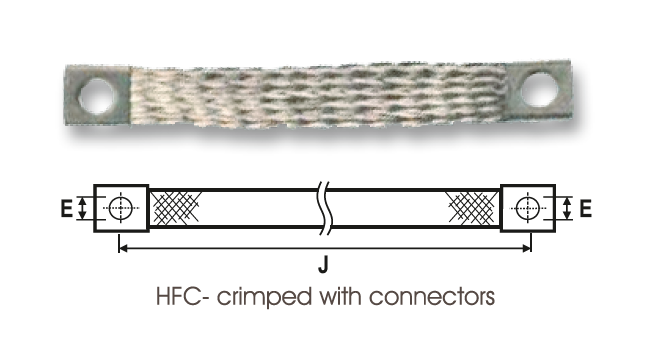

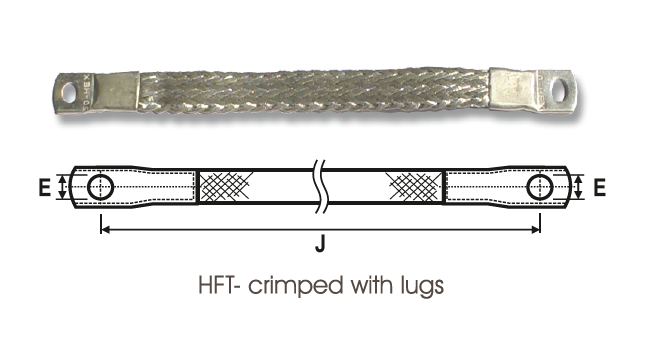

Cable mm2	Dimensions in mm			Current Rating AMP	Product Code Crimped with lugs	Product Code Crimped with connector
	J	E1	E2
4	50	6	6	50	HFT4 50 - 50	HFC4 50 - 50
	100	6	6	50	HFT4 100 - 50	HFC4 100 - 50
	150	6	6	50	HFT4 150 - 50	HFC4 150 - 50
	200	6	6	50	HFT4 200 - 50	HFC4 200 - 50
10	50	6	6	90	HFT10 50 - 90	HFC10 50 - 90
	100	6	6	90	HFT10 100 - 90	HFC10 100 - 90
	150	6	6	90	HFT10 150 - 90	HFC10 150 - 90
	200	6	6	90	HFT10 200 - 90	HFC10 200 - 90
16	100	8.5	8.5	125	HFT16 100 - 125	HFC16 100 - 125
	150	8.5	8.5	125	HFT16 150 - 125	HFC16 150 - 125
	200	8.5	8.5	125	HFT16 200 - 125	HFC16 200 - 125
	250	8.5	8.5	125	HFT16 250 - 125	HFC16 250 - 125
	300	8.5	8.5	125	HFT16 300 - 125	HFC16 300 - 125
25	100	10	10	160	HFT25 100 - 160	HFC25 100 - 160
	150	10	10	160	HFT25 150 - 160	HFC25 150 - 160
	200	10	10	160	HFT25 200 - 160	HFC25 200 - 160
	250	10	10	160	HFT25 250 - 160	HFC25 250 - 160
	300	10	10	160	HFT25 300 - 160	HFC25 300 - 160
30	100	10	10	180	HFT30 100 - 180	HFC30 100 - 180
	150	10	10	180	HFT30 150 - 180	HFC30 150 - 180
	200	10	10	180	HFT30 200 - 180	HFC30 200 - 180
	250	10	10	180	HFT30 250 - 180	HFC30 250 - 180
	300	10	10	180	HFT30 300 - 180	HFC30 300 - 180
35	100	10	10	210	HFT35 100 - 210	HFC35 100 - 210
	150	10	10	210	HFT35 150 - 210	HFC35 150 - 210
	200	10	10	210	HFT35 200 - 210	HFC35 200 - 210
	250	10	10	210	HFT35 250 - 210	HFC35 250 - 210
	300	10	10	210	HFT35 300 - 210	HFC35 300 - 210
50	100	12	12	250	HFT50 100 - 250	HFC50 100 - 250
	150	12	12	250	HFT50 150 - 250	HFC50 150 - 250
	200	12	12	250	HFT50 200 - 250	HFC50 200 - 250
	250	12	12	250	HFT50 250 - 250	HFC50 250 - 250
	300	12	12	250	HFT50 300 - 250	HFC50 300 - 250
