Specifications
| Colour of Insulation | Cable mm2 | Dimensions | Product Code | ||||

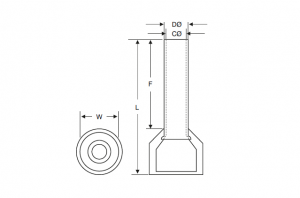

| F | L | W | D | C | |||
| White | 0.5 | 6 | 12 | 2.6 | 1.3 | 1 | HE0506 |
| 8 | 14 | HE0508 | |||||
| 10 | 16.4 | HE0510 | |||||
| 12 | 18.4 | HE0512 | |||||
| Blue | 0.75 | 6 | 12.4 | 2.8 | 1.5 | 1.2 | HE7506 |
| 8 | 14.4 | HE7508 | |||||
| 10 | 16.4 | HE7510 | |||||
| 12 | 18.4 | HE7512 | |||||
| Red | 1 | 8 | 12 | 3 | 1.7 | 1.4 | HE100 |
| 10 | 14 | HE1008 | |||||
| 12 | 16 | HE1010 | |||||
| 18 | 18 | HE1012 | |||||
| Black | 1.5 | 8 | 14.6 | 3.5 | 2 | 1.7 | HE1508 |
| 10 | 16.4 | HE1510 | |||||
| 12 | 18.4 | HE1512 | |||||
| 18 | 24.4 | HE1518 | |||||
| Grey | 2.5 | 8 | 15.2 | 4 | 2.6 | 2.3 | HE2508 |
| 10 | 17.2 | HE2510 | |||||
| 12 | 19.2 | HE2512 | |||||
| 18 | 25.2 | HE2518 | |||||
| Orange | 4 | 9 | 16.5 | 4.4 | 3.2 | 2.8 | HE4009 |
| 12 | 19.5 | HE4012 | |||||
| 18 | 25.5 | HE4018 | |||||
| Green | 6 | 10 | 18 | 6.3 | 3.9 | 3.5 | HE6010 |
| 12 | 20 | HE6012 | |||||
| 18 | 26 | HE6018 | |||||
| Brown | 10 | 12 | 21.5 | 7.6 | 4.9 | 4.5 | HE10-12 |
| 18 | 27.5 | HE10-18 | |||||
| White | 16 | 12 | 22.2 | 8.8 | 6.2 | 5.8 | HE16-12 |
| 18 | 28.2 | HE16-18 | |||||
| Brown | 25 | 16 | 29 | 11.2 | 7.9 | 7.5 | HE25-16 |
| 22 | 35 | HE25-22 | |||||
| White | 35 | 16 | 30 | 12.7 | 8.7 | 8.3 | HE35-16 |
| 25 | 39 | HE35-25 | |||||
| Olive | 50 | 20 | 36 | 15.3 | 10.9 | 10.3 | HE50-20 |
| 25 | 41 | HE50-25 |
