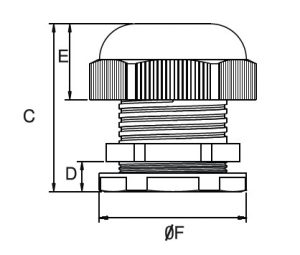

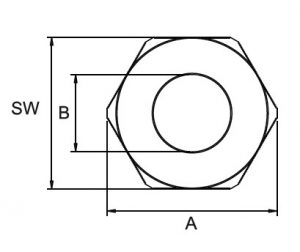

| Cable mm2 | SW | A | C | D | E | F | Product Code | Pkg. | |
| Max. | Min. | ||||||||
| 2.5 - 6.5 | 15 | 16.75 | 32 | 28 | 7.5 | 13 | 12 | HNCG - M12X 1.5 | 25 |
| 3.5 - 8 | 18.75 | 21 | 36 | 30.5 | 8.25 | 16.25 | 16 | HNCG - M16X 1.5 | 25 |
| 5 - 12 | 21.5 | 24 | 38.5 | 32 | 8.25 | 17 | 20 | HNCG - M20X 1.5 | 25 |
| 9 - 14 | 23.75 | 26.5 | 38 | 32 | 9 | 17.5 | 22 | HNCG - M25X 1.5 | 25 |
| 13 - 18 | 23.75 | 26.5 | 38 | 32 | 9 | 17.5 | 32 | HNCG - M32X 1.5 | 25 |
