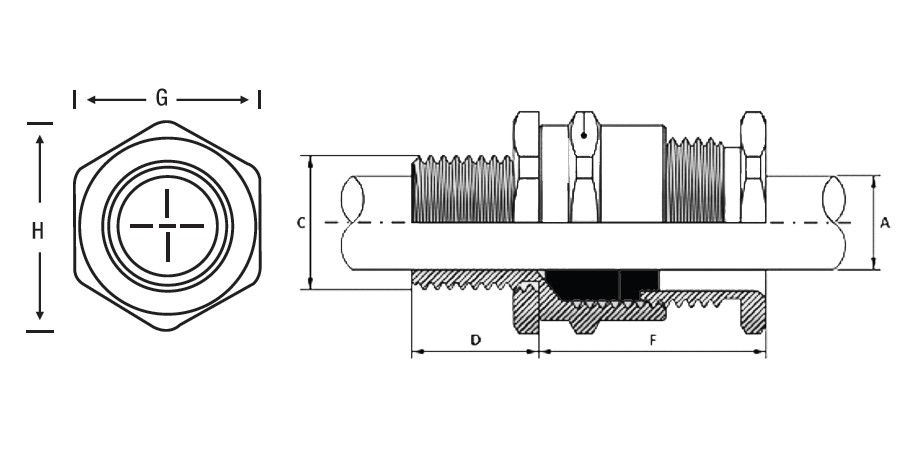

| Size | Cable Dimensions accommodate | Gland Dimensions | Product Code | |||||
| Overall Diameter A | ISO Entry Thread | Approx length from shoulder | Hexagon Size | |||||
| Min. mm | Max. mm | Dia. | Length | Across flat | Across corners | |||
| D mm | E mm | F mm | G mm | H mm | ||||
| 16 | 4.50 | 8.50 | 16 | 10 | 20.00 | 20.00 | 23.00 | HA2 16 |
| 20 S | 8.00 | 11.50 | 20 | 10 | 22.00 | 22.00 | 25.00 | HA2 20S |
| 20 | 11.00 | 14.00 | 20 | 10 | 22.00 | 22.00 | 25.00 | HA2 20 |
| 25 S | 14.00 | 17.50 | 20 | 10 | 25.00 | 30.00 | 34.00 | HA2 25 S |
| 25 | 17.50 | 20.40 | 25 | 10 | 26.00 | 30.00 | 34.00 | HA2 25 |
| 32 | 20.00 | 26.00 | 32 | 10 | 30.00 | 36.00 | 40.00 | HA2 32 |
| 40 S | 26.00 | 30.00 | 40 | 10 | 31.00 | 46.00 | 52.00 | HA2 40 S |
| 40 | 30.00 | 33.00 | 40 | 15 | 31.00 | 46.00 | 52.00 | HA2 40 |
| 50 S | 33.00 | 38.00 | 50 | 15 | 33.00 | 55.00 | 61.00 | HA2 50 S |
| 50 | 38.00 | 44.00 | 50 | 15 | 33.00 | 56.00 | 62.00 | HA2 50 |
| 63 S | 44.00 | 50.50 | 63 | 15 | 35.00 | 70.00 | 77.50 | HA2 63 S |
| 63 | 50 | 56.00 | 63 | 15 | 35.00 | 70.00 | 77.50 | HA2 63 |
| 75 S | 56.50 | 62.00 | 75 | 15 | 35.00 | 80.00 | 89.00 | HA2 75 S |
| 75 | 62.00 | 68.00 | 75 | 15 | 40.00 | 80.00 | 89.00 | HA2 75 |
| 90 | 68.00 | 78.00 | 90 | 20 | 45.00 | 100.00 | 112.00 | HA2 90 |
| 100 | 78.00 | 88.00 | 100 | 20 | 45.00 | 112.00 | 125.00 | HA2 100 |
