We are engaged in offering BW Cable Gland (4 Part) as per BS 6121:2005 standards. And
also available in CIEL (cast integral earth lug), these are used with armour or braided cable.
Further, this secure armouring & provides electrical continuity between armour & gland entry
component that are used for dry and indoor condition.
Design Features : 4 part armour lock, Knurled armour lock produces a low resistance earth clip.
Application : For use with armour or braided cable, secures armouring & provides electrical
continuity between armour & gland entry component made with mechanical cable retention used it
dry and indoor condition.
Ingress Protection: IP 3X (PVC/LSF shroud usage can give Extra protection from weather effects)
Order Code/Purchase Code:
Also available in CIEL (Cast Integral Earth Lug). For orders add ‘C’ to Prod. Code.

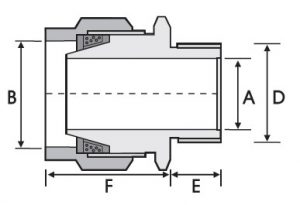

| Size | Cable Dimensions Accommodate | Gland Dimensions | Prod. Code | ||||||
| Under Armour Dia A Max. | Overall Dia. B Max. | Armour wire dia C | ISO Entry Thread | Approx length from shoulder | Hexagon Size | ||||
| mm | mm | mm | Dia | Length | Across flat | Across corners | |||
| D mm | E mm | F mm | G mm | H mm | |||||
| 16 | 8.6 | 13.5 | 0.9 | 16 | 10 | 23 | 20 | 23 | HBW 16 |
| 20 S | 12.3 | 17 | 0.90/1.25 | 20 | 10 | 23 | 23 | 24 | HBW 20 S |
| 20 | 14.3 | 20 | 0.90/1.25 | 20 | 10 | 30 | 25 | 27 | HBW 20 |
| 25 S | 18 | 23.8 | 1.25/1.60 | 25 | 10 | 30 | 31 | 32.5 | HBW 25 S |
| 25 | 20.4 | 27 | 1.25/1.60 | 25 | 10 | 32 | 30 | 38.5 | HBW 25 |
| 32 | 26.5 | 33 | 1.60/2.00 | 32 | 10 | 36 | 41.5 | 45.5 | HBW 32 |
| 40 S | 31 | 37 | 1.60/2.00 | 40 | 10 | 36 | 45 | 50 | HBW 40S |
| 40 | 32.5 | 43 | 1.60/2.00 | 40 | 15 | 40 | 49 | 54 | HBW 40 |
| 50S | 37.8 | 48 | 2.00/2.50 | 50 | 15 | 40 | 58 | 65 | HBW 50S |
| 50 | 44 | 53 | 2.00/2.50 | 50 | 15 | 45 | 62.3 | 69.5 | HBW 50 |
| 63S | 50.5 | 60.5 | 2.5 | 63 | 15 | 45 | 70 | 77 | HBW 63S |
| 63 | 56.5 | 65.5 | 2.5 | 63 | 15 | 50 | 76.3 | 85 | HBW 63 |
| 75S | 62.5 | 72 | 2.5 | 75 | 15 | 50 | 85 | 95 | HBW 75 S |
| 75 | 67.5 | 78.5 | 2.50/3.15 | 75 | 15 | 75 | 90.5 | 99 | HBW 75 |
| 90 | 80 | 93 | 3.15 | 90 | 20 | 75 | 112 | 125 | HBW 90 |
